WALL STATIONS FOR FAST CHARGING IN DC POWER OF ELECTRIC CARS
BE-D [DC] Wall Box

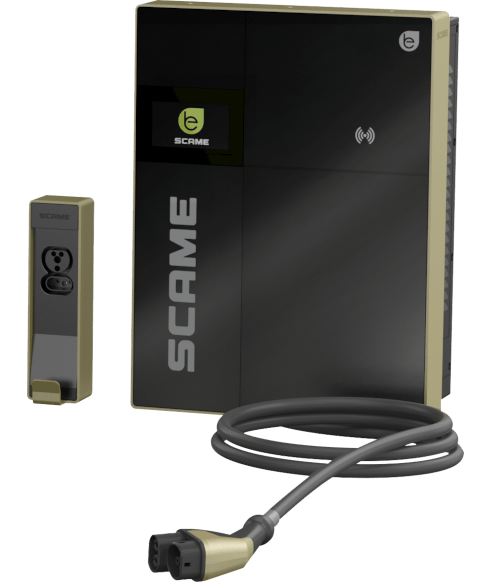

BE-D is a range of Wall Box embellished with a powder-coated aluminium frame, with a power of 25 kW. They are equipped with a cable with a CCS2 or CHAdeMO connector or two cables equipped with a CCS2 and a CHAdeMO connectors.
Fast Charging
Design
Safety & Reliability
BE-D Modes
ACCESS CONTROL AND IDENTIFICATION MODES
The Management System of BE-D
FREE access mode
In access controlled locations, such as gated and fenced areas, the unit is typically setup in free mode, i.e. anybody able to physically access the charger is authorized to use it by default. In other words, no explicit user identification is needed in order to e.g. start or stop charging sessions. The built-in RFID card reader is therefore disabled
The FREE access mode of the BE-D station is indicated on the interface of the Scame Management System, under the “Connectors” section in the menu.
In access controlled locations, such as gated and fenced areas, the unit is typically setup in free mode, i.e. anybody able to physically access the charger is authorized to use it by default. In other words, no explicit user identification is needed in order to e.g. start or stop charging sessions. The built-in RFID card reader is therefore disabled BE-D Wall Boxes in FREE access mode are the ideal choice for installation in environments that do not require controlled access as usage is normally limited to a few people... View all +
Go to www.scame.com for more information about BE-D Wall Box
Wall Boxes BE-D in access mode with AUTHENTICATION are the final choice in all places and in all cases where access to the charging stations needs to be regulated. Authentication can be managed with two alternative modes: - User Cards authentication* (Net Local) | in this case the RFID reader is enabled - Authentication monitored and controlled by a central station via OCPP 1.6. In this situation all the use cases typically featured by charging platforms, such as billing, charger reservations and remote identification via a mobile app are supported.
* The registration of authorized user cards is done directly in the Scame Management System of the single unit.
Wall Boxes BE-D in access mode with AUTHENTICATION are the final choice in all places and in all cases where access to the charging stations needs to be regulated. Authentication can be managed with two alternative modes: - User Cards authentication* (Net Local) | in this case the RFID reader is enabled - Authentication monitored and controlled by a central station via OCPP 1.6. In this situation all the use cases typically featured by charging platforms, such as billing, charger reservations and remote identification via a mobile app are supported. * The registration of authorized user cards is done directly in the Scame Management System of the single unit. The Wall Boxes in access mode with AUTHENTICATION are the final choice in all those cases where the plant must be monitored and managed remotely.... View all +
Go to www.scame.com for more information about BE-D Wall Box

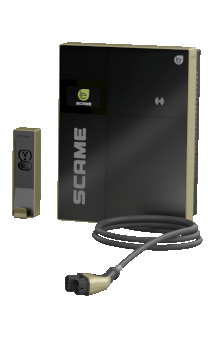

BE-D is a range of DC Power Wall Box charging stations with a power of 25 kW and equipped with a single cable with a CCS2 or CHAdeMO connector, or with two cables with a CCS2 and a CHAdeMO connector, fixed on specific wall supports when not in use. The user interface is guaranteed by a TFT touch screen. Available with access limited to a authorized users, the BE-D charging stations, equipped with Ethernet–WiFi-2/3/4G connectivity, can be monitored and managed remotely via the Scame Management System or they can be connected to an external E-Mobility Service Provider via a OCPP 1.6Json standard communication protocol. Made of halogen-free technopolymer and embellished with a powder-coated aluminium frame, they are characterized by clean and essential lines, signed Trussardi+Belloni Design, the BE-D Charging Stations are the ideal choice in any context. A specific support box in powder coated steel allows the installation on the ground.
Technical Characteristics
Voltage rating : 230/400V ac
Current rating : 40A ac
Frequency : 50-60Hz
Distribution system : 3P+N+PE
Output connectors : CHAdeMO e/o CCS2
Voltage output : 150-500 Vdc / 150-1000 Vdc
Current output : max 60A dc
Efficiency : 94%
EMC Class : A
Ingress protection rating : IP54
Operationg temperature : -30/+45°C derating over +45°C
Storage temperature : -30°C + 60°C
Altitude: 2500 m max
Humidity (non condesing) : da 5% a 95%
Acustic noise : < 55 db
Material : Varnished metal
Glow wire test : -
IK degree at 20°C : IK10
Colour : Anthracite
Mounting : Wall Mounting
Saline solution : Resistant
UV Rays : Resistente
Dimensions (WxDxH) 594x252x794 mm
Weight (approx.) 70 kg excluding the cables
Main functionalities and elements
TFT 7" touch color display with motion sensor
reader RFID MiFare Classic /Plus / DESFire
local server wired with OCPP 1.6J protocol
emergency stop button
charging mode 4 CCS2 ro CHAdeMO
identification of authorized user
interfacing with OCPP Central Station
predisposition for network connection
working in a free access o identification access mode
Reference Standards
IEC/EN 61851-1 (Electric vehicle conductive charging system. Part 1: General requirement.)
IEC/EN 61439-7 (Low-voltage switchgear and control gear assemblies. Part 7: Assemblies for e.v. charging stations. )
Versions
With thetered charging cable and CHAdeMo output
With thetered charging cable and CCS2 output
With thetered charging cables and CCS2 or CHAdeMo outputs (Not simultaneous))
