Customizable CA charging stations for electric vehicle charging - Scame E-Mobility
FLOOR STANDING CHARGING STATIONS IN AC POWER FOR ELECTRIC CAR

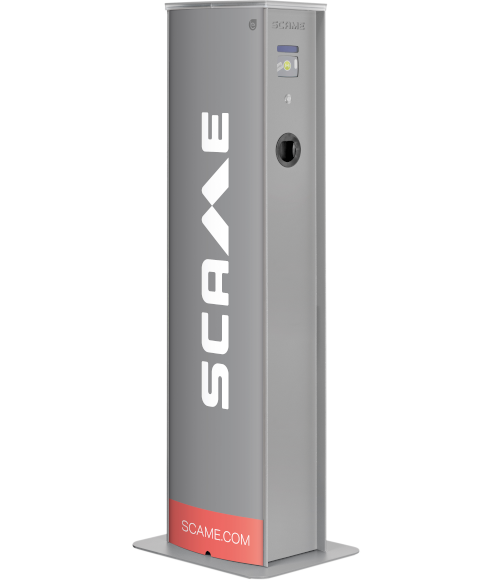

CA Pillar
CA is a range of pillars, with with removable plexiglass panels that can be customized graphically, ideal for installation in public and private environment.
They are equipped with maximum four 3,7 kW Type 3A and/or 7,4 kW - 11 kW - 22 kW Type 2 socket outlets, arranged laterally.
They are equipped with maximum four 3,7 kW Type 3A and/or 7,4 kW - 11 kW - 22 kW Type 2 socket outlets, arranged laterally.
VERSIONS
CA Versions
BUSINESS
STATIONS FOR STANDALONE OR MULTI-STATION APPLICATIONS, AS A SATELLITE
In addition to the possibility of operating in a standalone way, either with or without access restriction, a BUSINESS charging station can operate as a Satellite of a Master station.
A Master station defines the rules that regulate the access to the group of stations. That is done via Scame’s Management System or an OCPP backend to which the Master is connected to.
OPERATING MODE
In addition to the possibility of operating in a standalone way, either with or without access restriction, a BUSINESS charging station can operate as a Satellite of a Master station.
A Master station defines the rules that regulate the access to the group of stations. That is done via Scame’s Management System or an OCPP backend to which the Master is connected to.
OPERATING MODE
- FREE
- PERSONAL
- WEB/NET [Satellite]
- Management System [Satellite]
- Load Balancing [Satellite]
PILLAR CA
BUSINESS Version
STATIONS FOR STANDALONE OR MULTI-STATION APPLICATIONS, AS A SATELLITE
OPERATING MODE
- FREE | FREE mode charging stations are the ideal choice for installation in environments that do not require controlled access as use is limited to a few people...read more
- PERSONAL | PERSONAL mode charging stations are suitable for installation in all places requiring controlled access as use is not limited exclusively to vehicle owners... read more
- WEB/NET [Satellite] | WEB/NET mode chargin stations are the definitive solution in all those cases in which the system must be monitored and managed remotely. The access to recharging can be with or without authorization...read more
FUNCTIONALITIES
- Management System [Satellite] | Scame's charging stations can be monitored and managed remotely via the proprietary Management System. The software does not require subscriptions and manages from 1 to 16 charging points...read more
- Load Balancing [Satellite] | The Scame Load Balancing feature proves to be essential when there are multiple charging points, but the system is not able to power them all simultaneously...read more
Go to the product sheets of the CA Pillar BUSINESS version on the Scame.com website
PRO
STATIONS FOR MULTI-STATION APPLICATIONS, REGULATED ACCESS VIA SCAME MANAGEMENT SYSTEM OR OCPP PLATFORM
The ultimate expression of pre-prepared charging to operate as Masters in a Master/Satellite system architecture.
Access to a charging session can be restricted, or not, according to the rules defined in the Scame Management System or by the OCPP platform to which the Master station is connected to.
OPERATING MODE
The ultimate expression of pre-prepared charging to operate as Masters in a Master/Satellite system architecture.
Access to a charging session can be restricted, or not, according to the rules defined in the Scame Management System or by the OCPP platform to which the Master station is connected to.
OPERATING MODE
- WEB/NET [Master]
- Management System [Master]
- Load Balancing [Master]
- Management of up to 16 charging points
- OCPP 1.6JSON
PILLAR CA
PRO Version
STATIONS FOR MULTI-STATION APPLICATIONS, REGULATED ACCESS VIA SCAME MANAGEMENT SYSTEM OR OCPP PLATFORM
OPERATING MODE
- WEB/NET [Master] | WEB/NET mode chargin stations are the definitive solution in all those cases in which the system must be monitored and managed remotely. The access to recharging can be with or without authorization...read more
FUNCTIONALITIES
- Management System [Master] | Scame's charging stations can be monitored and managed remotely via the proprietary Management System. The software does not require subscriptions and manages from 1 to 16 charging points...read more
- Load Balancing [Master] | The Scame Load Balancing feature proves to be essential when there are multiple charging points, but the system is not able to power them all simultaneously...read more
- Management of up to 16 charging points
- OCPP 1.6JSON
Go to the product sheets of the CA Pillar PRO version on the Scame.com website
plus
Why choose
Scame Pillar
Scame Pillar
Design
Enriched with details that enhance their functionality besides characterizing their design.
Advanced Technology
High quality and reliable products, solutions and components.
Customer Support
Telephone and direct assistance by qualified personnel.
CA Pillar
Functionalities
Functionalities
--green-2
LOAD BALANCING
Scame’s Load Balancing system proves essential in cases where there are multiple charging points, but not enough power to feed all of them simultaneously at their maximum rated power.
By activating this feature, an option will be available in Scame’s Management system and it will be possible to allocate a maximum total current threshold for a Master-Satellite system architecture.
In case the charging stations exceed this limit, the Master station will democratically balance the power output of the entire system architecture allowing all vehicles to keep recharging but at a lower current value.
Scame Load Balancing feature can be active even if the charging stations are managed by an external E-mobility Service Provider.
By activating this feature, an option will be available in Scame’s Management system and it will be possible to allocate a maximum total current threshold for a Master-Satellite system architecture.
In case the charging stations exceed this limit, the Master station will democratically balance the power output of the entire system architecture allowing all vehicles to keep recharging but at a lower current value.
Scame Load Balancing feature can be active even if the charging stations are managed by an external E-mobility Service Provider.
--green-3
MANAGEMENT SYSTEM
Scame charging stations can be monitored and managed remotely, directly through the Scame Management System (MS) or connected to an external e-mobility Service Provider.
In the first option, the proprietary software is installed in WEB/NET charging stations, can be used freely and allows the management of up to 16 charging points in a Master/Satellite architecture.
The MS Scame must be configured in a local network, does not require additional software and can be managed directly by an administrator who can access the Management System with his credentials, connecting to a specific IP address.
In the second, the Scame MS allows you to connect the Master stations to an external e-mobility Service Provider (EMSP) that will manage them directly, enabling them to provide additional features such as billing for reloads and booking stations.
In the first option, the proprietary software is installed in WEB/NET charging stations, can be used freely and allows the management of up to 16 charging points in a Master/Satellite architecture.
The MS Scame must be configured in a local network, does not require additional software and can be managed directly by an administrator who can access the Management System with his credentials, connecting to a specific IP address.
In the second, the Scame MS allows you to connect the Master stations to an external e-mobility Service Provider (EMSP) that will manage them directly, enabling them to provide additional features such as billing for reloads and booking stations.
